Product Description

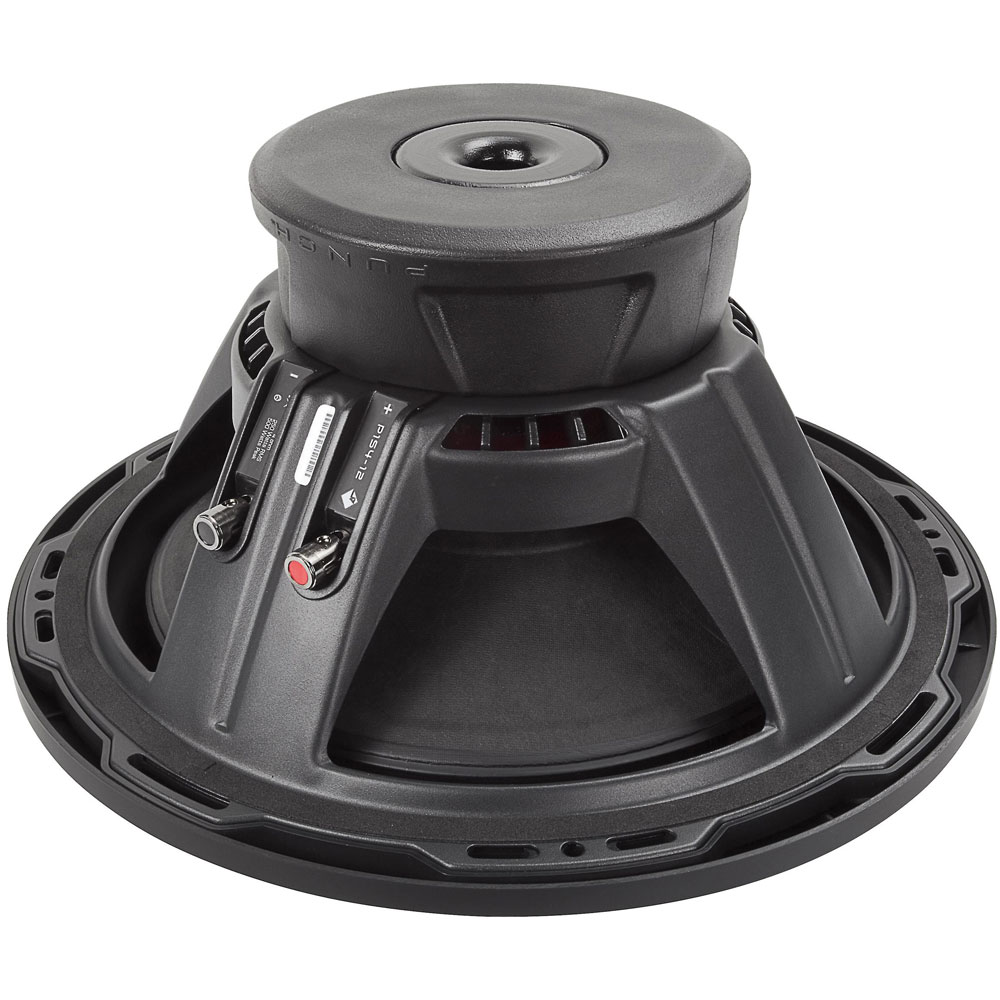

• 12" Single 4 Ohm Punch Series Stage 1 Subwoofer
• Power Handling:
  • Peak: 500 watts
  • RMS: 250 watts


• Impedance: 4 Ohm
• High modulus Kevlar reinforced paper cone and dust cap provides durability
• High density NBR half-roll surround for enhanced excursion
• Custom insulated/isolated 10 AWG nickel plated compression input push terminal assembly will keep connection secure and resist corrosion
• Tear and fatigue resistant poly-cotton spider will hold up against high amounts of excursion
• High temperature 2" 4-layer voice coil with spun laced Nomex insulating reinforcement collar
• Optimized motor magneteics with extended pole piece and bumped backplate
• Fatigue resistant and reduced strain stitched on flexible lead wire design
• Multi point high-temperature/high-strength neck joint bonding technique for a cleaner bass output
• High quality 16 gauge compound bend frame geometry adds to the sturdy construction
• Semi flexible PVC removable protective motor cover helps keep motor clean and dust free
• Proprietary spider venting/cooling technique helps keep subwoofer operating at a safe temperature
• Decorative ABS trim ring for attractive appearance
• Mounting Diameter: 11-1/4"
• Mounting Depth: 6"
• Overall Diameter: 13-1/16"
• Frequency Response: 25-250 Hz
• Sensitivity: 86 dB
• Xmax: 9mm
