LAB OEM-Spec™ 0.75 ft^3 Ported MDF Enclosure Box for Single JL Audio 10W6v3 Subwoofer
  • LAB OEM-Spec™ 0.75 ft^3 Ported MDF Enclosure Box for Single JL Audio 10W6v3 Subwoofer

LAB OEM-Spec™ 0.75 ft^3 Ported MDF Enclosure Box for Single JL Audio 10W6v3 Subwoofer

Item:OS-JLAUDIO-10W6v3-PORTED

Price:$199.99

FREE Shipping

Availability: Usually ships in 2-3 weeks
Tell a Friend

Product Description


What exact subwoofer does this fit?
This enclosure is precision-built specifically for a single 10" JL Audio® W6v3 subwoofer (model 10W6v3-D4). The cutout diameter is perfectly matched at 9.02" (9-1/32").

Will it fit in my vehicle?
Yes, it is designed to maximize output while maintaining a space-conscious footprint. The exact external dimensions are 21.5" W x 12.375" H x 11.125" D.

How is the performance and wiring?
This vented/ported design is tuned optimally to 39Hz to deliver incredibly deep, low-end extension down to 33Hz (F3). It also features an upgraded 2" round nickel-plated binding post for secure and reliable wiring connections.



OEM-Spec™ Enclosures: Purpose-Built for JL Audio®



Dropping a premium JL Audio® subwoofer into a cheap leaky box is a quick way to leave performance on the table. Our LAB OEM-Spec™ enclosures aren't trying to reinvent the wheel. Instead, they are precision-built tools manufactured right here in the USA to do exactly what JL Audio® intended.



We construct these with rock-solid 3/4” CNC-cut MDF and feature 1” or thicker front baffles on select models to support heavier motors. These enclosures follow JL Audio’s exact volumetric blueprints to the letter. By utilizing their highly efficient smaller-airspace designs, you get two very practical benefits. You get increased mechanical power handling to keep your sub safe from over-excursion, and you gain a significantly smaller footprint in your trunk.



Available in both ported and sealed configurations for most JL Audio® drivers, the OEM-Spec™ line delivers the accurate, hard-hitting bass JL is famous for at a price point that actually makes sense.



Why It Hits the Mark:



  • Factory-Tuned Precision: Built exclusively to JL Audio® factory specs for optimal Thiele/Small (T/S) parameter matching.
    •
  • Heavy-Duty Construction: 100% 3/4” CNC-cut MDF with ultra-thick front baffles on select models for maximum structural integrity.
    •
  • American Made: Designed, cut, and assembled in the USA for strict quality control.
    •

Technical Specifications:
  • JL Audio® designed W6v3 10-inch vented woofer enclosure
  • Built using JL Audio®'s recommended ported box design for a single 10" JL Audio® W6v3 sub (10W6v3-D4)
  • Constructed of 0.75" CNC-cut high-grade MDF
  • High-grade black automotive carpet finish
  • Upgraded 2" round nickel-plated binding post
  • Made in California, U.S.A.

  • Enclosure volume: 0.75 ft^3 (net internal)
  • Peak tuning frequency (Fb): 39Hz
  • F3 (low-end extension): 33Hz
  • Sub cutout diameter: 9.02" (9-1/32")

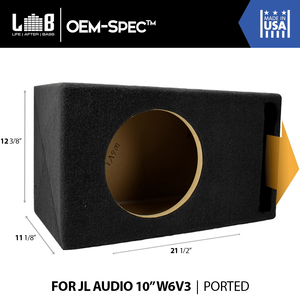

  • Dimensions: 21.5"W x 12.375"H x 11.125"D
