Product Description

General Features:

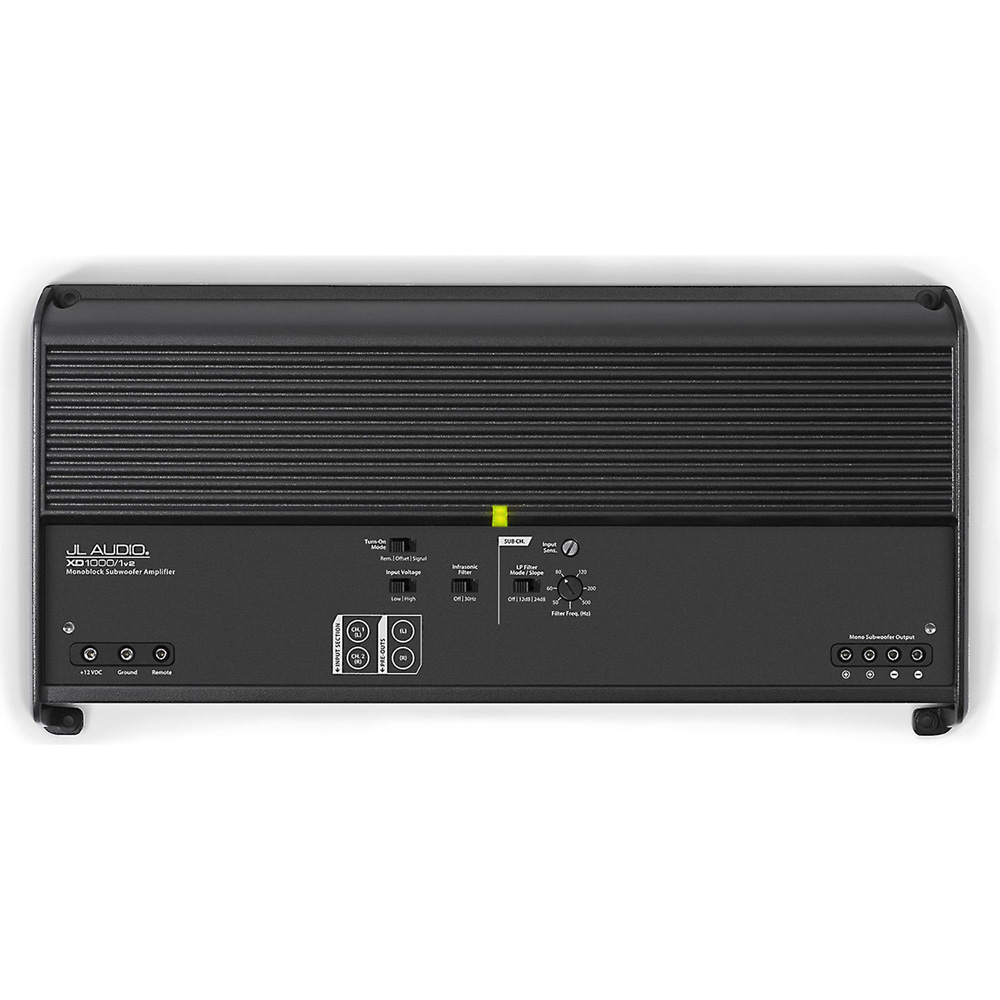

• XDv2 Series Class D Monoblock Amplifier
• RMS Power Rating @14.4V:
  • 4 ohms: 600 watts x 1 chan.
  • 3 ohms: 800 watts x 1 chan.
  • 2 ohms: 1000 watts x 1 chan.
  • 1 ohm: ----------N/A----------
• RMS Power Rating @12.5V:
  • 4 ohms: 500 watts x 1 chan.
  • 3 ohms: 650 watts x 1 chan.
  • 2 ohms: 800 watts x 1 chan.
  • 1 ohm: ----------N/A----------
• NexD High Speed Switching Class D Technology
• Wired HD-RLC remote level control available, sold separately
• LED power (green), over-current (yellow) and protect (red) indicators
• Advanced Rollback Protection
• Dual-Range Differential Balanced Input Section
• Buffered pass-through preamp RCA outputs
• Selectable turn-on modes: REM / Offset / Signal
  • +12 V Remote Turn-On: Traditional remote lead wire, from headunit
  • DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
  • Signal-Sensing: On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)
• Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Detented, Calibrated Filter Freq. Potentiometer
• 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley Crossover
• Input sensitivity:
  • Low level: 800mV - 8V
  • High level: 200mV - 2V
• Frequency Response: 7 - 500 Hz
• Total Harmonic Distortion (THD): <1%
• Signal to Noise Ratio: >83 dB
• Damping Factor @ 4 ohms: >1000 / 50 Hz
• Selectable Infrasonic Filter: Off / 30 Hz
• Selectable Low-Pass Filter Slope: 12 dB or 24 dB
• Variable low-pass filter: 50 - 500 Hz, 12 or 24 dB/octave
• Fuse Rating: 80A x 1 inline (not supplied)
• Weight: 8.50 lb
• Dimensions: 7.09"W x 14.73"L x 2.05"H
• SKU # 98257
• 1-Year Warranty
