Product Description

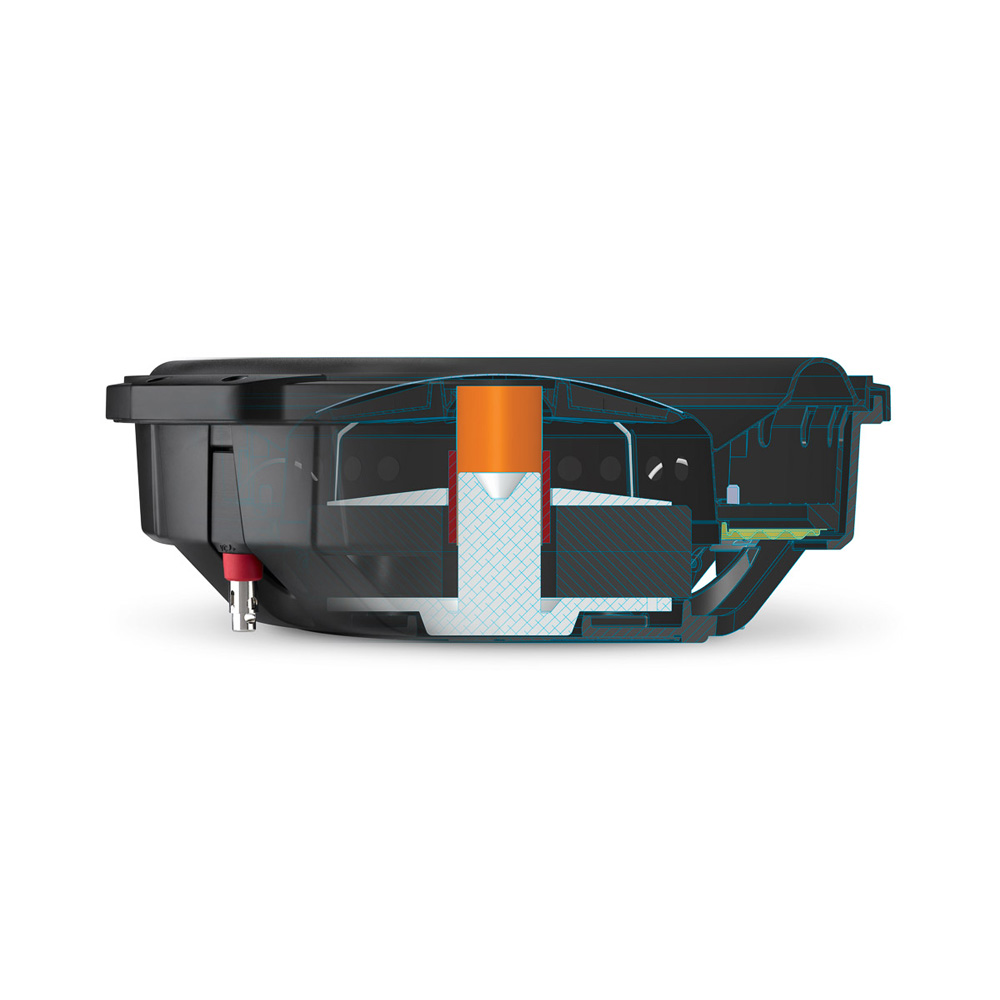

• 12" TW3 (Thin-Line) Series Shallow Mount Subwoofer
• Power Handling:
  • RMS: 400 watts
• Recommended Power Range: 200 - 400 watts
• Impedance: Dual 4-Ohm
• Injection molded, mica-filled polypropylene cone
• Rubber surround
• No pole vent: permits mounting close to rear wall of enclosure.
• Very small sealed enclosure volume requirements
• Very long linear excursion capability
• DMA-optimized motor designs
• Patented concentric tube architecture
• Patented floating cone attach method technology
• Cast alloy frame
• Aluminum-alloy dust cap and rear cap with JL Audio logo
• Precision-built in USA at JL Audios Miramar, Florida factory
• "Tab-Ear" frame design to fit driver in tight spaces
• Mounting depth: 3.50 "
• Cutout dimensions: 11.625 "
• Free Air Resonance (Fs): 26.46 Hz
• Sensitivity: 84.11 dB
• Xmax: 15.2 mm
• Equivalent Compliance (Vas): 48.73 L
• Frequency response: ~22 ~ 200 Hz
• SKU # 92185
• 1-Year Warranty
