Product Description

600/1v3 Specifications:

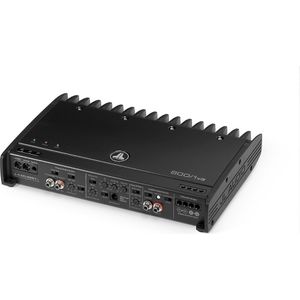

• Slash v3 Series Class D Monoblock Car Amplifier
• RMS Power Rating (11V-14.5V):
  • 4 ohms: 600 watts x 1 chan.
  • 3 ohms: 600 watts x 1 chan.
  • 2 ohms: 600 watts x 1 chan.
  • 1.5 ohms: 600 watts x 1 chan.
• High-Damping H-Bridge, Class D Mono Circuit
• R.I.P.S. - Regulated, Intelligent Power Supply
• Pulse width modulation-regulated switching power supply
• LED power/thermal/low-impedance indicators
• Differential-balanced input type with RCA jack inputs
• Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
• Single-band, fully parametric equalizer with "Q" and boost adjustment
• Preamp RCA outputs w/ crossover filter options
• Remote bass port input (JL Audio RBC-1 sold separately)
• Input sensitivity:
  • Low level: 200mV-2V
  • High level: 800mV-8V
• State-variable, 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley LPF
• Variable low-pass filter: 40 - 200 Hz
• Fully variable, 24 dB/octave Butterworth HPF
• Subsonic ("Infrasonic") Filter: 15 - 60 Hz
• Advanced Bass Control:
  • "Q" Bandwidth Control: 0.5 - 4.3
  • Center Frequency: 20 - 85 Hz
  • EQ Boost Control: 0 - +15 dB
• Selectable output frequency mode: LP / HP
• Selectable output frequency slop: 12 dB / 24dB
• Output filter cutoff frequency: 40 - 200 Hz
• Total Harmonic Distortion: <0.05% @ 4Ω , 50 Hz
• Signal to Noise Ration: >95 dB
• Frequency response: 5 - 250 Hz (+0, -1 dB)
• Damping Factor: >500 @ 4Ω/50 Hz, >250 @ 2Ω/50 Hz,
• Inline 60A x 1 ANL or MaxiFuse Recommended
• Dimensions: 13.40"L x 9.25"W x 2.36"H
• SKU # 98350
• 1-Year Warranty
