Product Description

Subwoofer Features:
• 12" TW1 (Thin-Line) Series Shallow Mount Subwoofer
• Power Handling:
  • RMS: 300 watts
• Recommended Power Range: 75 - 300 watts
• Injection molded, mica-filled polypropylene cone
• Rubber surround
• No pole vent: permits mounting close to rear wall of enclosure.
• Ultra-compact sealed enclosure volume requirements
• Long linear excursion capability
• DMA-optimized motor designs
• Engineered Lead-Wire System
• Patented concentric tube architecture
• Patented floating cone attach method technology
• Cast alloy frame with flat edges for tight driver grouping
• Precision-built in USA at JL Audio Miramar, Florida factory
• Mounting depth: 4.62 "
• Cutout dimensions: 11.0625 "
• Free Air Resonance (Fs): 35.06 Hz
• Sensitivity: 85.07 dB
• Xmax: 10.0 mm
• Equivalent Compliance (Vas): 28.54 L
• Frequency response: ~24 ~ 200 Hz

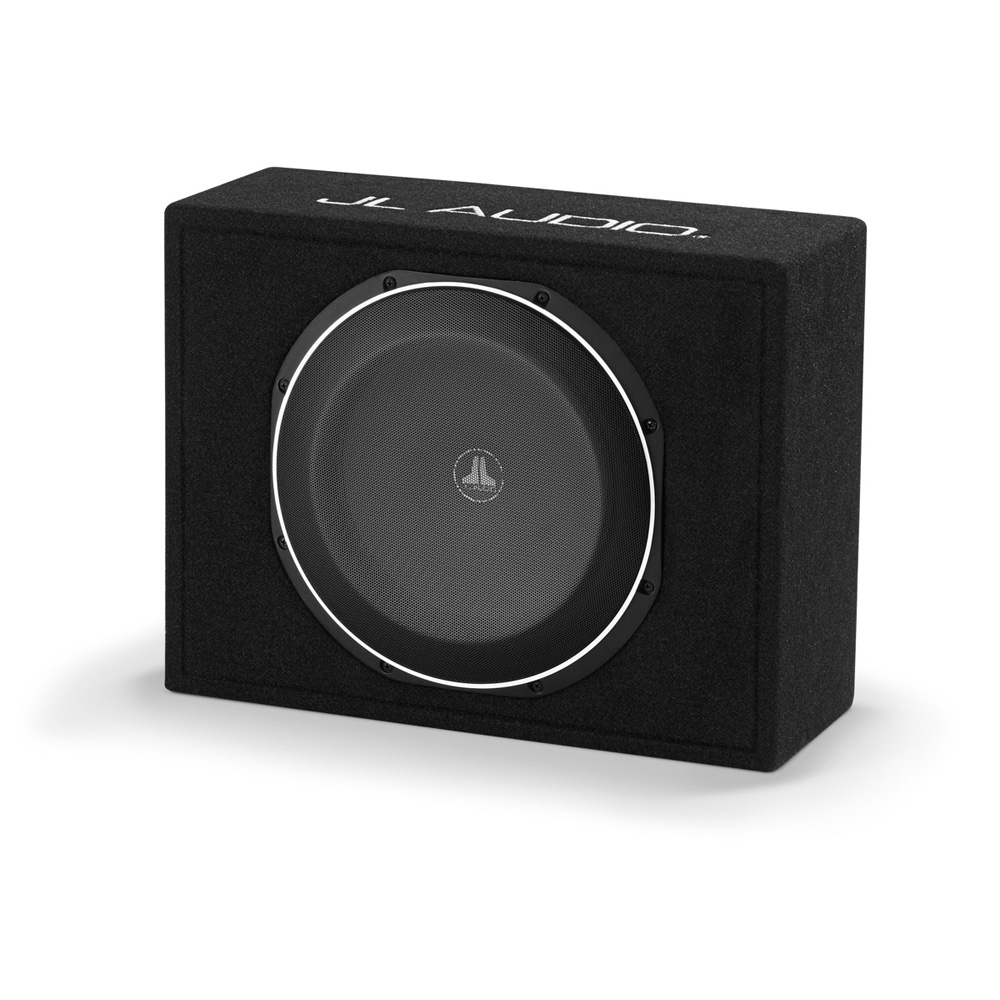

  • Enclosure Features:
• Impedance: 2-Ohm
• Enclosure Dimensions: 6.625" D x 18.00" W x 13.75" H
• Black, high-grade automotive carpet
• JL AUDIO embroidered in silver on the top surface
• CNC-Cut High-Grade MDF construction
• Binding post terminals
• SKU # 93325
• 1-Year Warranty
