Product Description

General Features:

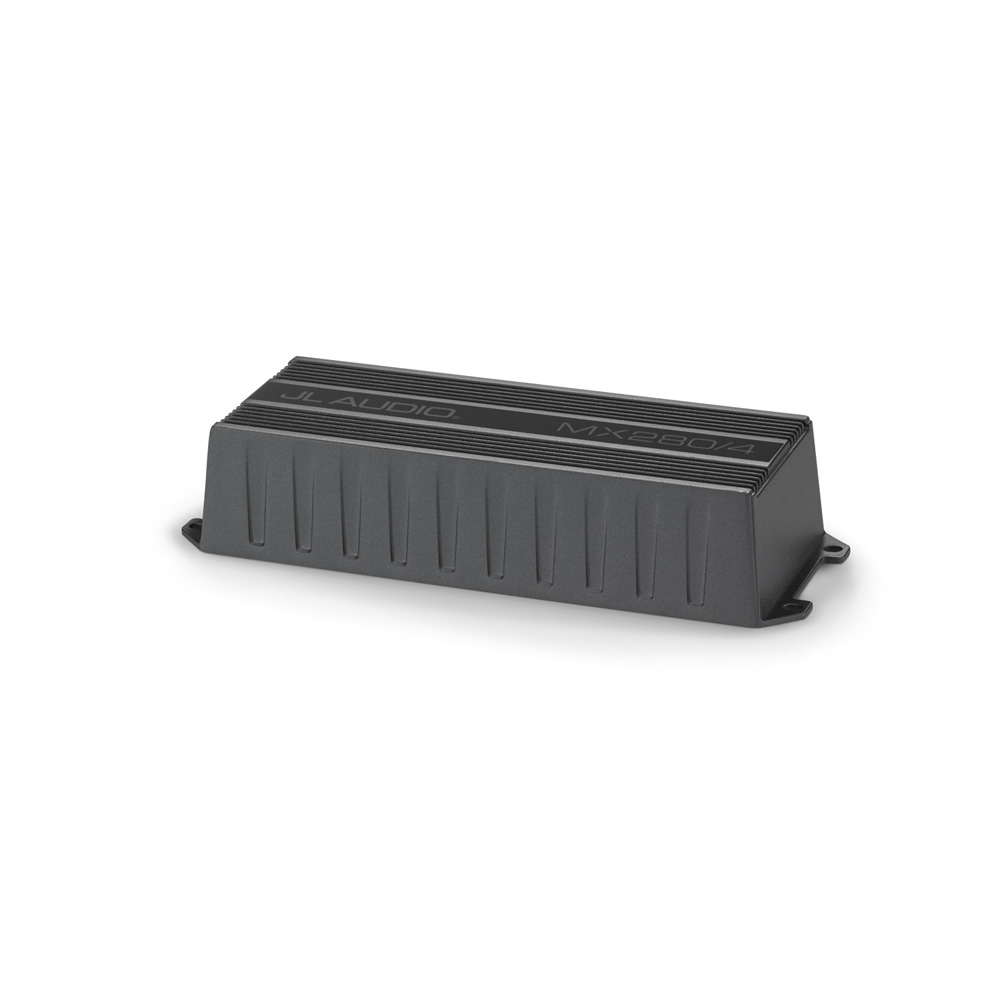

• JL Audio MX280/4 Weatherproof Amplifier
• Class-D Full Range 4-Channel Amplifier
• RMS Power Rating:
  • 4 ohms: 50 watts x 4 chan.
  • 2 ohms: 70 watts x 4 chan.
  • 1 ohm: ------------N/A------------
  • Bridged, 4 ohms: 140 watts x 2 chan.
• Total power output: 280 watts
• CEA-2006 Compliant Amplifier
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• IPX6 water resistant rating
• 4/3/2 or Mono channel operation
• Black powder coat finish
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Input sensitivity:
  • Low level: 250mV - 4V
  • High level: 750mV - 15V
• Frequency Response: 20 - 20,000 Hz
• Total Harmonic Distortion (THD): <1%
• Signal to Noise Ration: >68 dB
• Variable high-pass filter: 35 - 300 Hz, 12 dB/octave
• Variable low-pass filter: 35 - 300 Hz, 12 dB/octave
• Fuse Rating: 35 A x 1
• 8 gauge power and ground wiring is recommended for installation.
• Dimensions: 8.66"W x 3.09"D x 1.77"H
• SKU # 98405
• 1-Year Warranty
