Product Description

General Features:

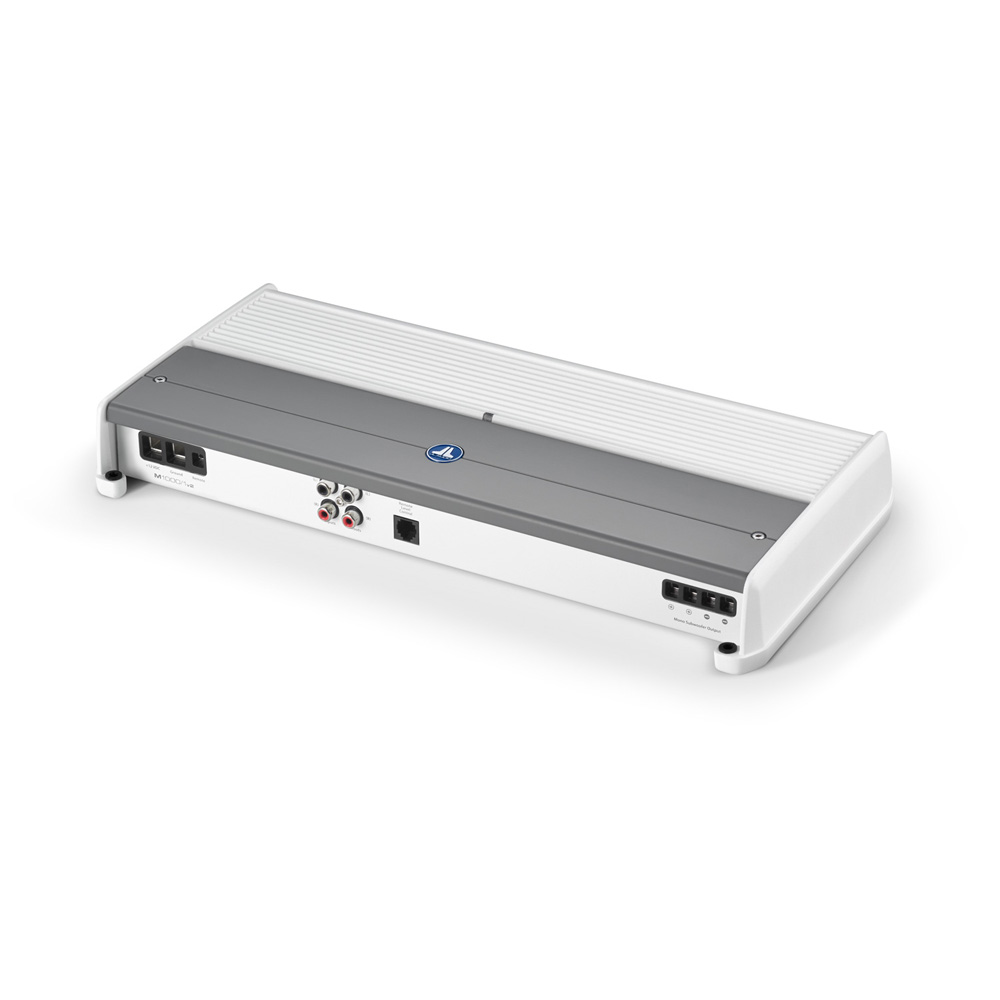

• Monoblock Class D Marine Subwoofer Amplifier
• RMS Power Rating @ 14.4 V:
  • 4 ohms: 600 watts x 1 chan.
  • 3 ohms: 800 watts x 1 chan.
  • 2 ohms: 1000 watts x 1 chan.
  • 1 ohms: ----------N/A-----------
• RMS Power Rating @ 12.5 V:
  • 4 ohms: 500 watts x 1 chan.
  • 3 ohms: 650 watts x 1 chan.
  • 2 ohms: 800 watts x 1 chan.
  • 1 ohms: ----------N/A-----------
• Unregulated MOSFET switching type
• NexD ultra-high-speed switching design
• Selectable turn-on modes
  • +12V remote turn-on lead (preferred method)
  • DC Offset-Sensing: detects a very small DC signal (high level signals)
  • Signal sensing: detects presence of a full-range audio signal
• Dual-Range Differential Balanced Input Section
  • RCA inputs accept Speaker-Level Inputs or Line-Level signals
  • JL Audio XD-CLRAIC2-SW required for speaker level, sold separately
• LED power (green) and protect (red) indicators
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• White and gray powder-coat finish
• Gasketed covered controls and stainless steel hardware
• Detented, Calibrated Filter Freq. Potentiometer
• Wired remote level control available, sold separately: JL Audio HD-RLC
• Input Voltage Range (Selectable):
  • Low level: 200 mV - 2 V RMS
  • High level: 800 mV - 8 V RMS
• Frequency Response: 7 - 500 Hz (+0, -1dB)
• Total Harmonic Distortion (THD): <1.0% @ 2 Ω per channel
• Signal to Noise Ration: >83 dB
• Damping Factory @ 4ohms: >1000 / 50 Hz
• Variable low-pass filter: 50 - 500 Hz, 12 or 24 dB/octave
• Selectable Subsonic (Infrasonic) Filter: Off / 30 Hz
• Recommended Inline-Fuse Rating (not included): 80 A x 1 (AFS, AGU or MaxiFuse)
• Dimensions: 7.09"W x 14.73"L x 2.05"H
• SKU # 98357
• 1-Year Warranty
