JL Audio C5-570x 150W RMS 5" x 7" 2-Way Evolution C5 Series Coaxial Speaker System
  • JL Audio C5-570x 150W RMS 5" x 7" 2-Way Evolution C5 Series Coaxial Speaker System

JL Audio C5-570x 150W RMS 5" x 7" 2-Way Evolution C5 Series Coaxial Speaker System

Item:JL-Audio-C5-570x

Price:$549.99

Plus Shipping

Tell a Friend

Product Description

  • 5" x 7" / 6" x 8" Evolution C5 Series 2-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 450 watts per set / 225 watts per channel
    • RMS: 150 watts per set / 75 watts per channel
  • Recommended Power Range: 25 - 150 watts per channel
  • Mineral-Filled Polypropylene Cone
  • Butyl Rubber Surround
  • Cast Alloy Frame/Basket
  • Elevated Frame Cooling
  • Ferrite Woofer Magnet
  • 1.00" Voice Coil on Kapton® Former
  • Low-Profile, Symmetrical Roll Spider
  • Dynamic Motor Analysis (DMA) Optimized Motor
  • 0.75" Silk Soft Dome Tweeter
  • Ferrofluid Cooling/Damping Neodymium Tweeter Magnet
  • 2-way Crossover Network w/ 2nd Order Low-Pass and 2nd Order High-Pass
  • Circuit
  • Premium Mylar® Capacitors w/ Air-Core Inductors
  • 4-Position Adjustable Tweeter Output Level
  • 3-position Mid-range Presence Control
  • Polyswitch Tweeter Protection
  • Woofer Dimensions:
    • Top-mount depth: 2.45"
    • Frame Outer Diameter: 5.47" x 7.68"

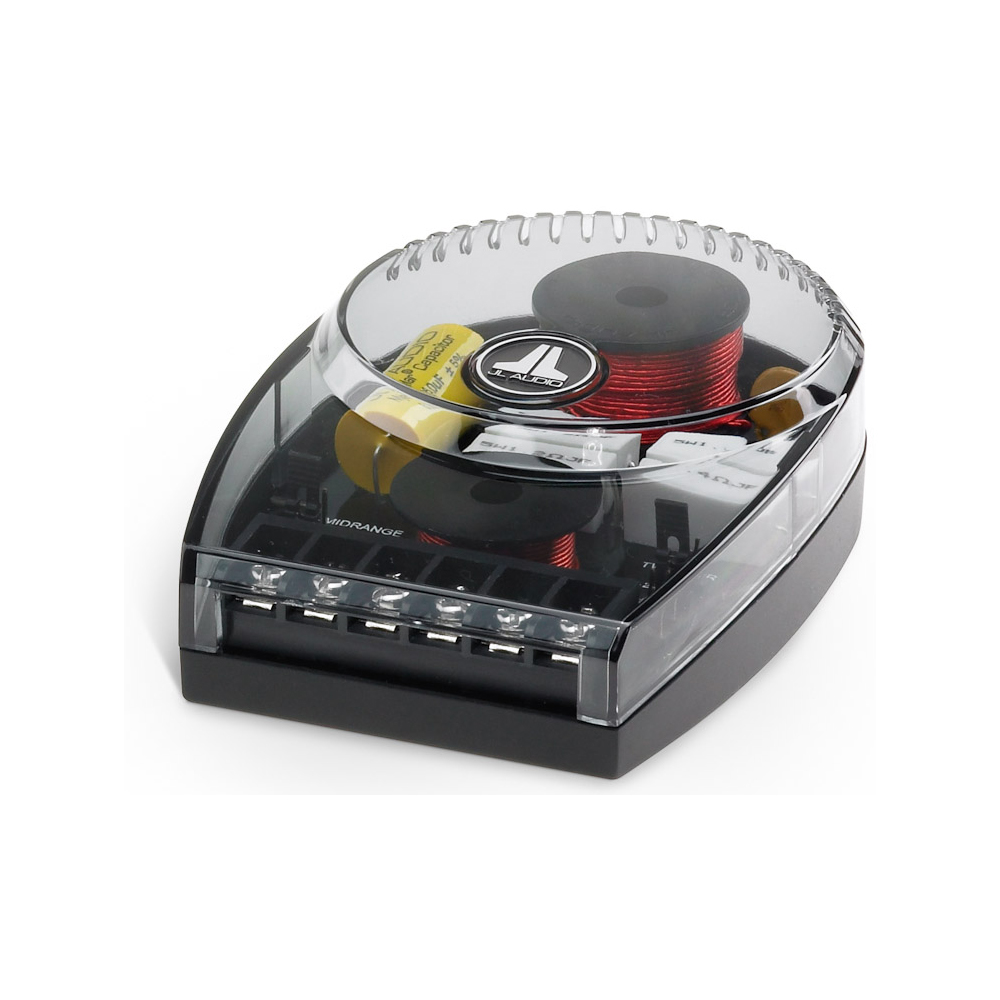

    Crossover Dimensions:
    • Width: 3.36"
    • Height: 1.44"
    • Depth: 4.72"
  • Nominal Impedance: 4 ohm
  • Efficiency: 90.5 dB @ 1 watt / 1 meter
  • Frequency Response: 48 Hz - 25 KHz ± 3 dB
  • SKU # 99103

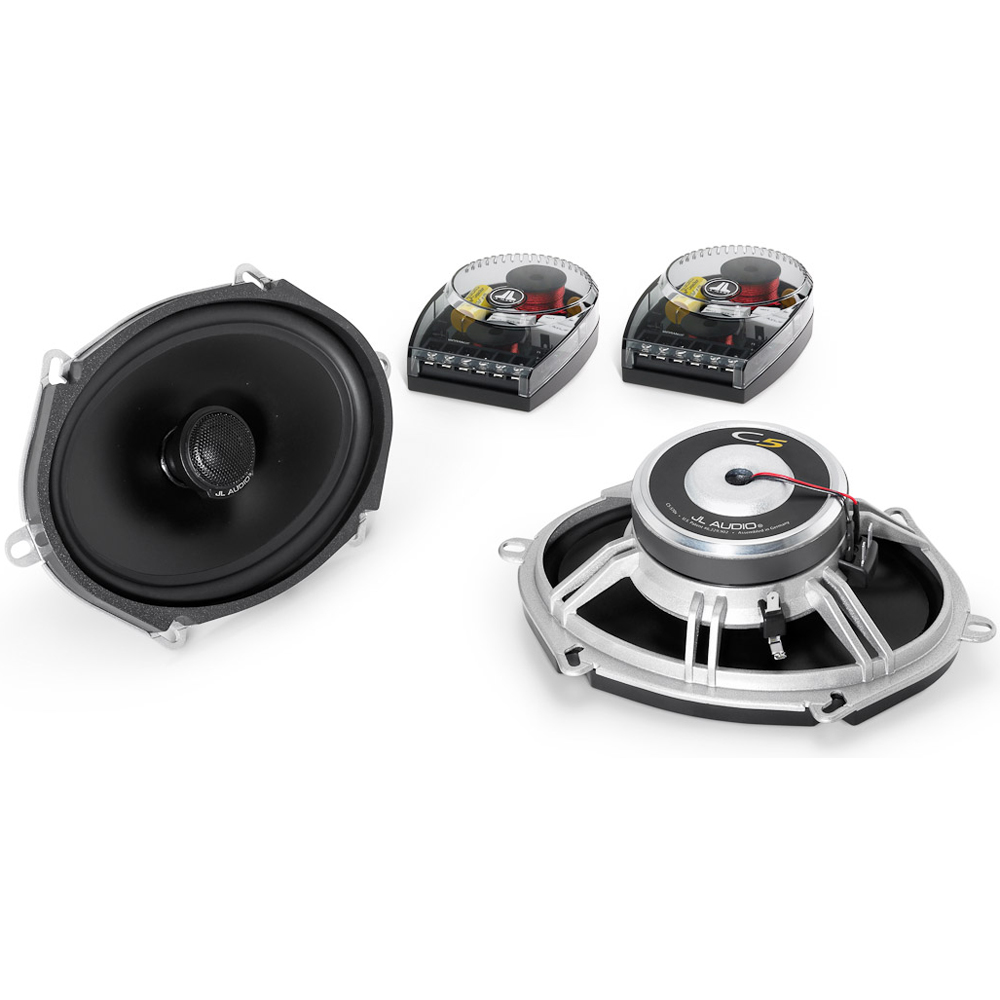

Priced Per Complete Coaxial System: 2 full-range speakers and 2 crossover networks.
