Product Description

Subwoofer Features
• 12" W0v3 Series Subwoofer Driver
• Power Handling:
• RMS: 300 watts
• Recommended Power Range: 75 - 300 watts
• Impedance: 4-Ohm
• Mineral-filled, polypropylene cone woofer for excellent durability
• Large roll surround for generous amounts of excursion
• Elevated frame cooling brings air directly to the voice coil
• Designed for compact sealed enclosures or medium-sized ported enclosures
• Large excursion for louder bass and less distortion
• DMA Optimized motor system reduces distortion and tight, clean bass
• Lead wire woven into spider for added strength
• Metallic silver frame finish
• 2.0" High temperature voice coil
• Free Air Resonance (Fs): 28.43 Hz
• Sensitivity: 85.64 dB
• Xmax: 11.4 mm
• Reference Efficiency (no): 0.2200%
• Frequency response: ~22 ~ 250 Hz
• Matching Amplifier:
• JL Audio XD300/1v2
• JL Audio JX500/1D
  • Enclosure Features:

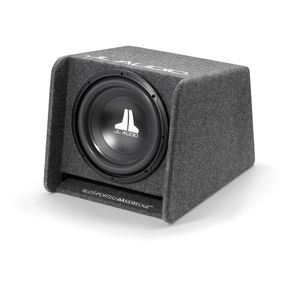

• 12" Slot Ported MDF Subwoofer Enclosure
• Loaded with single 12W0v3 12" subwoofer
• Designed for forward, rear or down-firing installation
• Top-quality MDF construction
• Durable dark gray carpet finish
• Five-Way binding post connectors
• Embroidered JL Audio logo
• Embroidered "Slot-Ported BassWedge" logo on port mouth
• 4 Ohm final impedance
• Dimensions: 15-3/4"TD x 20-5/16"BD x 16-5/16"W x 15-3/16"H
• SKU # 93281
• 1-Year Warranty
