Product Description

• 8" W7AE Series Subwoofer Driver
• Power Handling:
  • RMS: 500 watts
• Recommended Power Range: 200 - 500 watts
• 10th Anniversary Edition:
  • Satin-Black Powdercoated Basket
  • Bright Anodized Surround Clamp Ring
  • Anniversary Edition Cone Badge
  • Anniversary Edition Terminal Label
• Impedance: Single 3 Ohm
• Polypropylene W-Cone assembly
• Polyester foam OverRoll surround
• Floating-cone attach method
• Plateau-reinforced spider attachment
• Radially cross-drilled pole piece
• Massive forced-air-cooled aluminum alloy frame
• Highly linear, DMA-Optimized motor system
• Huge diameter, progressive roll spider
• Co-extruded double lead wires
• Dual ultra-long voice coils
• Precision-built in USA at JL Audios Miramar, Florida factory
• Mounting depth: 6.83 "
• Cutout dimensions: 6.94 "
• Free Air Resonance (Fs): 35.2 Hz
• Sensitivity: 82.7 dB
• Xmax: 19 mm
• Reference Efficiency (no): 0.1100%
• Frequency response: ~23 ~ 200 Hz
  • 85 Hz LPF recommended
• SKU # 92117
• 1-Year Warranty

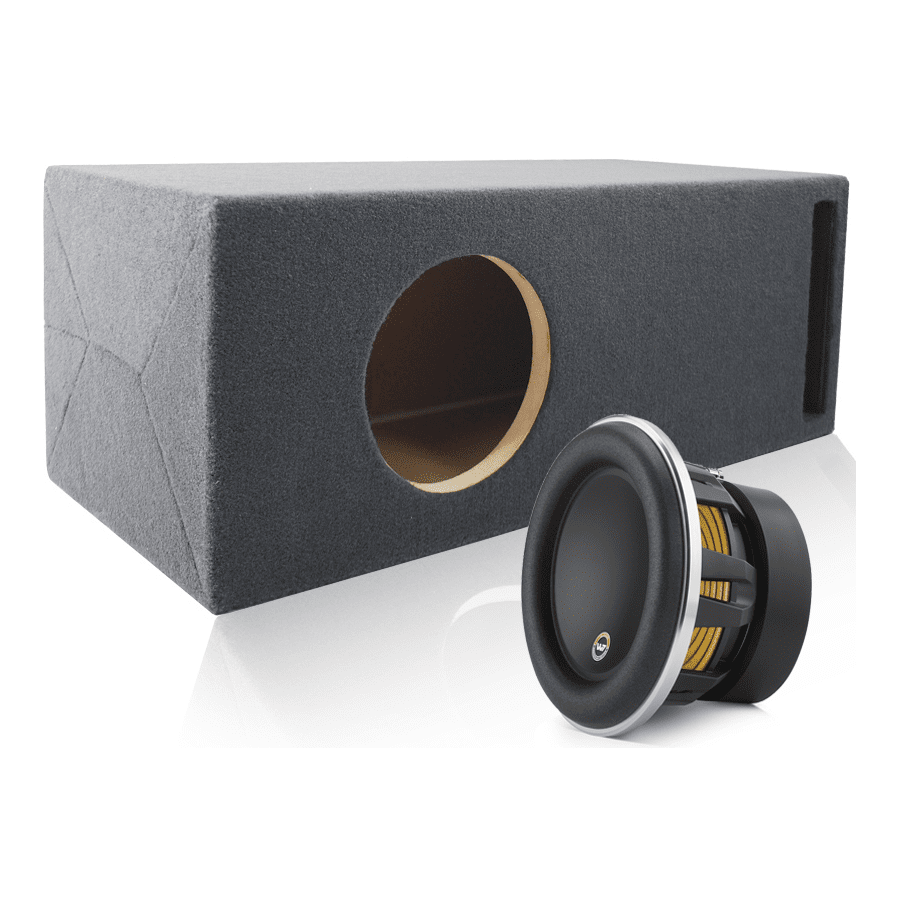

• JL Audio® designed W7 AE 8-inch vented subwoofer enclosure box
• Built using JL Audio's recommended ported box design for a single 8" JL Audio® W7AE / W7 sub woofer (8W7AE-3 / 8W7-3)
• 1.00 cu. ft. tuned @ 34.33Hz
• Constructed of 0.75" CNC-cut high-grade MDF
• High-grade dark gray automotive carpet
• Gold-plated binding post terminals
• Made in California, U.S.A.


• Enclosure volume: 1.00 ft^3 (net internal)
• Peak tuning frequency (Fb): 34.33Hz
• F3: 28.02Hz
• Sub cutout diameter: 6.94" (6-15/16")
• Dimensions: 25.5"W x 10"H x 12"D
