Product Description

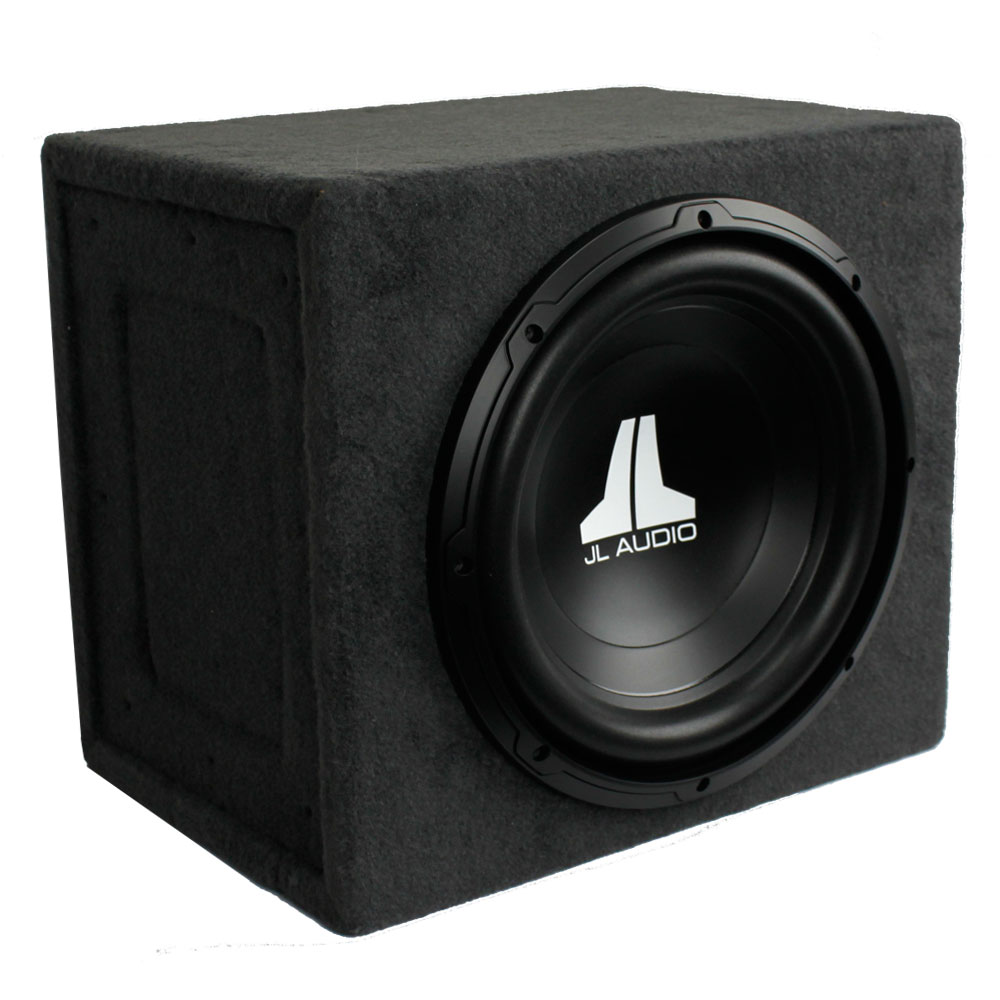

Package includes one JL Audio 12W0v3-4 12” subwoofer, pre-loaded in sealed enclosure

JL Audio 12W0v3-4 12” W0v3 Subwoofer

• 12" W0v3 Series Subwoofer Driver
• Power Handling:
  • RMS: 300 watts
• Recommended Power Range: 75 - 300 watts
• Impedance: Single 4-Ohm
• Mineral-filled, polypropylene cone woofer for excellent durability
• Large roll surround for generous amounts of excursion
• Elevated frame cooling brings air directly to the voice coil
• Designed for compact sealed enclosures or medium-sized ported enclosures
• Large excursion for louder bass and less distortion
• DMA Optimized motor system reduces distortion and tight, clean bass
• Lead wire woven into spider for added strength
• Metallic silver frame finish
• 2.0" High temperature voice coil
• Mounting depth: 5.40 "
• Cutout dimensions: 11.0625"
• Free Air Resonance (Fs): 28.43 Hz
• Sensitivity: 85.64 dB
• Xmax: 11.4 mm
• Reference Efficiency (no): 0.2200%
• Frequency response: ~22 ~ 250 Hz

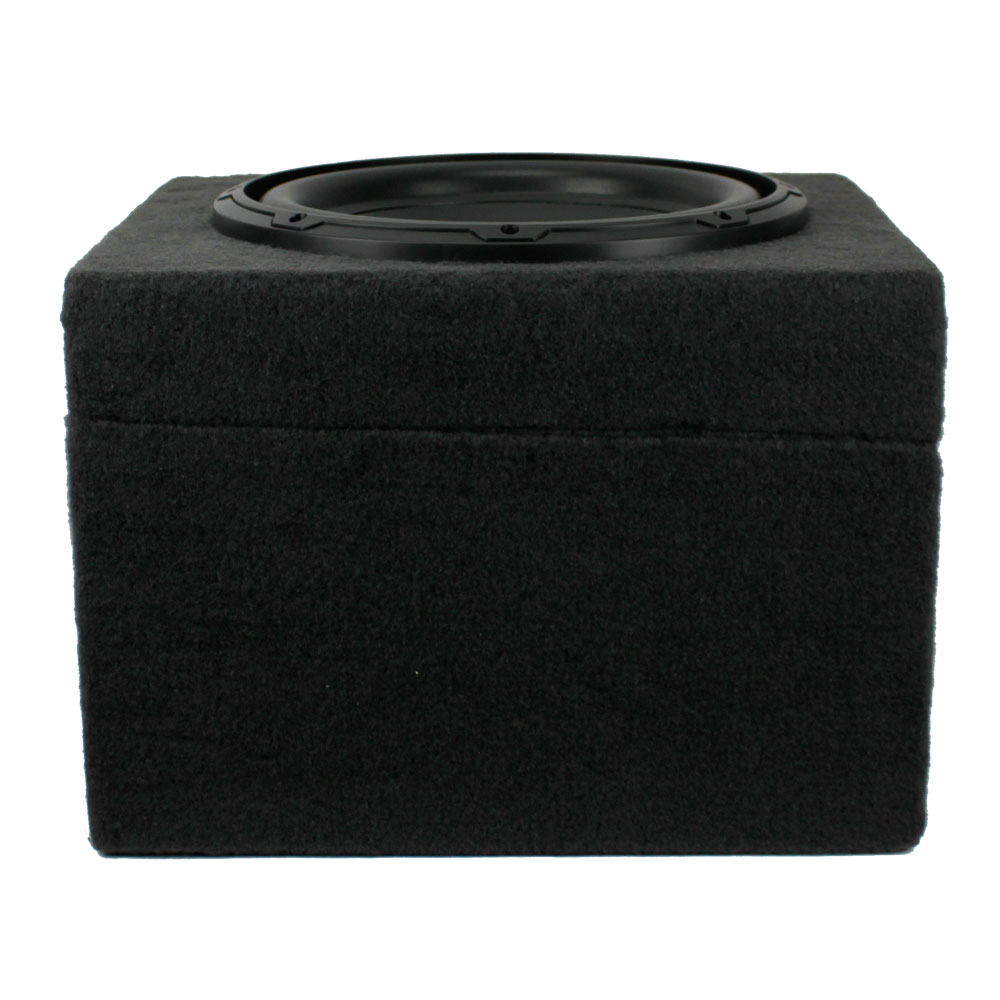

LAB PreFab™ Sealed MDF Enclosure for Single 12" Round Car Subwoofer

• Single 12-inch sealed woofer enclosure
• Compatible with one (1) standard 12" round sub woofer
• Constructed of 0.63" CNC-cut high-grade MDF
• Airtight sealed chamber
• High-grade black automotive carpet

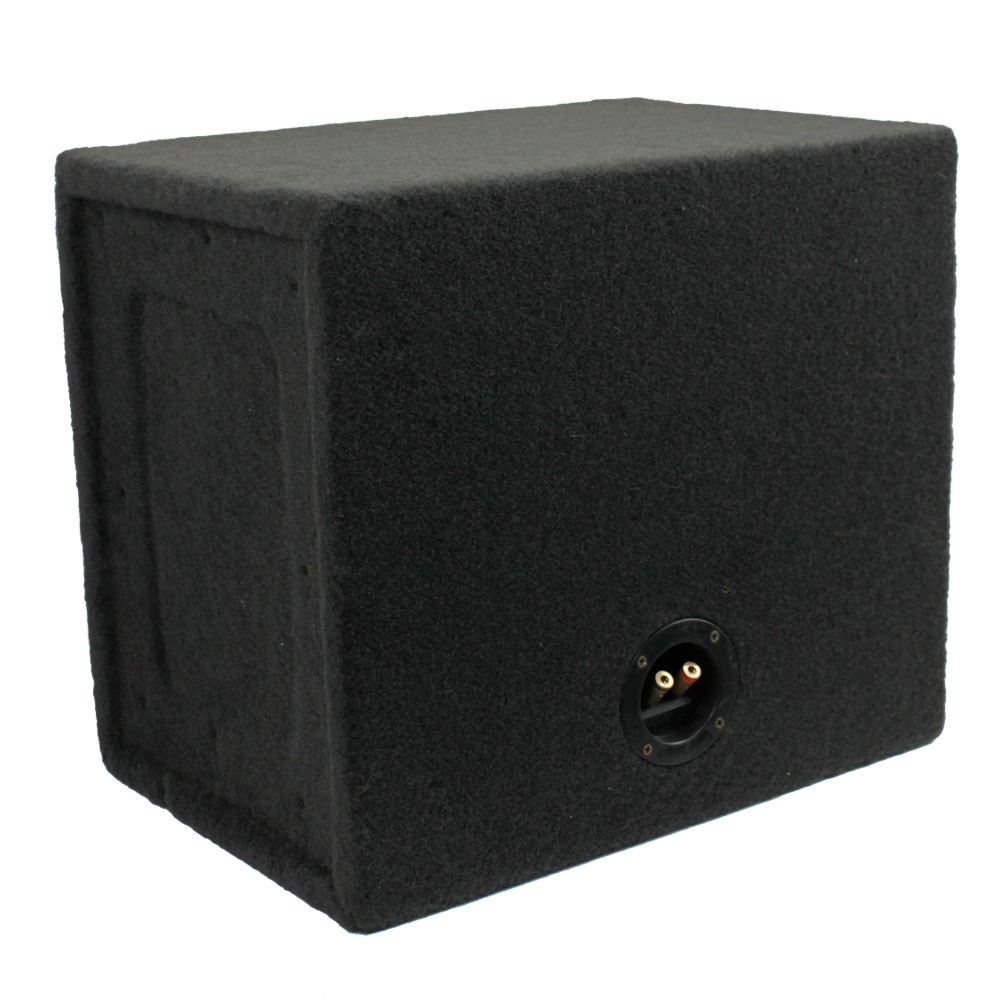

• Standard speaker terminal
• Made in California, U.S.A.


• Enclosure volume: 1.02 ft^3
• Sub cutout diameter: 11"
• Mounting depth: 10"
• Dimensions: 16.25"W x 14.50"H x 11.50"D
