Product Description

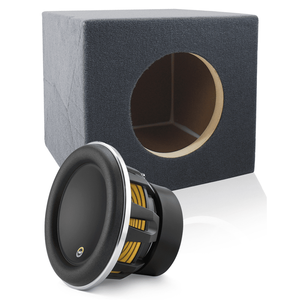

• 10" W7AE Series Subwoofer Driver
• Power Handling:
  • RMS: 750 watts
• Recommended Power Range: 300 - 750 watts
• 10th Anniversary Edition:
  • Satin-Black Powdercoated Basket
  • Bright Anodized Surround Clamp Ring
  • Anniversary Edition Cone Badge
  • Anniversary Edition Terminal Label
• Impedance: Single 3 Ohm
• Polypropylene W-Cone assembly
• Polyester foam OverRoll surround
• Floating-cone attach method
• Plateau-reinforced spider attachment
• Radially cross-drilled pole piece
• Massive forced-air-cooled aluminum alloy frame
• Highly linear, DMA-Optimized motor system
• Huge diameter, progressive roll spider
• Co-extruded double lead wires
• Dual ultra-long voice coils
• Precision-built in USA at JL Audios Miramar, Florida factory
• Mounting depth: 8.0 "
• Cutout dimensions: 8.74 "
• Free Air Resonance (Fs): 30.6 Hz
• Sensitivity: 84.3 dB
• Xmax: 23 mm
• Reference Efficiency (no): 0.1700%
• Frequency response: ~20 ~ 200 Hz
  • 85 Hz LPF recommended
• SKU # 92114
• 1-Year Warranty

• JL Audio® designed W7 AE 10-inch sealed subwoofer enclosure box
• Built using JL Audio's recommended sealed box design for a single 10" JL Audio® W7AE / W7 sub woofer (10W7AE-3 / 10W7-3)
• 1.25 cu. ft. sealed
• Constructed of 0.75" CNC-cut high-grade MDF
• Reinforced 1" MDF front baffle
• High-grade dark gray automotive carpet
• Gold-plated binding post terminals
• Made in California, U.S.A.


• Enclosure volume: 1.25 ft^3 (net internal)
• F3: 40.5Hz
• Fc: 43.5Hz
• Qtc: 0.763
• Sub cutout diameter: 8.74" (8-3/4")
• Dimensions: 14.5"W x 14.5"H x 15.375"D
