JL Audio 10W3v3-4 500W RMS 10" W3v3 Series Single 4-Ohm Subwoofer
JL Audio 10W3v3-4 500W RMS 10" W3v3 Series Single 4-Ohm Subwoofer
Item:JL-Audio-10W3v3-4
Price:
$359.99
FREE Shipping
Tell a Friend
Out of Stock
Product Description

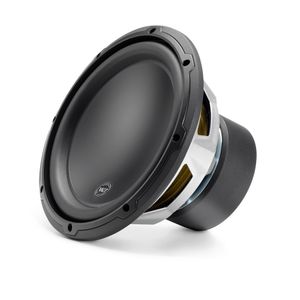

10-inch W3v3 Series Subwoofer Driver
Power Handling:
RMS: 500 watts
Recommended Power Range: 150 - 500 watts
Impedance: Single 4-Ohm
Injection-molded, mineral-filled polypropylene cone
Nitrile butadiene rubber surround
Stamped steel basket
Customization trim ring
Floating-cone attach method
Highly linear, DMA-Optimized motor system
Insert molded suspension, coil and terminal sub-assembly
Patented vented reinforcement collar (VRC)
Elevated frame cooling design
Nickel plated brass spring terminals
Engineered lead-wire design and attachments
Precision-built in USA at JL Audios Miramar, Florida factory
Mounting depth: 5.93 inches
Cutout dimensions: 9.0625 inches
Free Air Resonance (Fs): 31.49 Hz
Sensitivity: 84.87 dB
Xmax: 14.0 mm
Reference Efficiency (no): 0.1900%
Frequency response: ~25 ~ 250 Hz
SKU # 92151
1-Year Warranty
