Product Description

General Features:

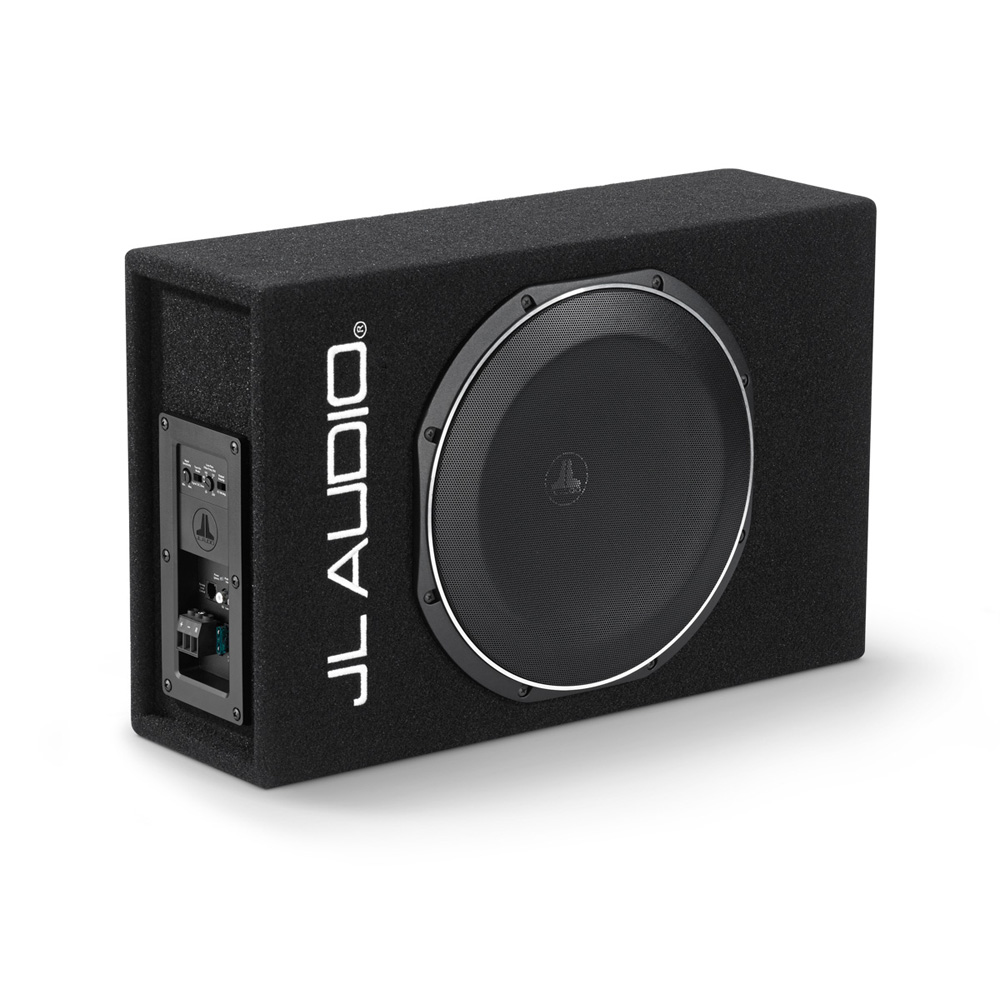

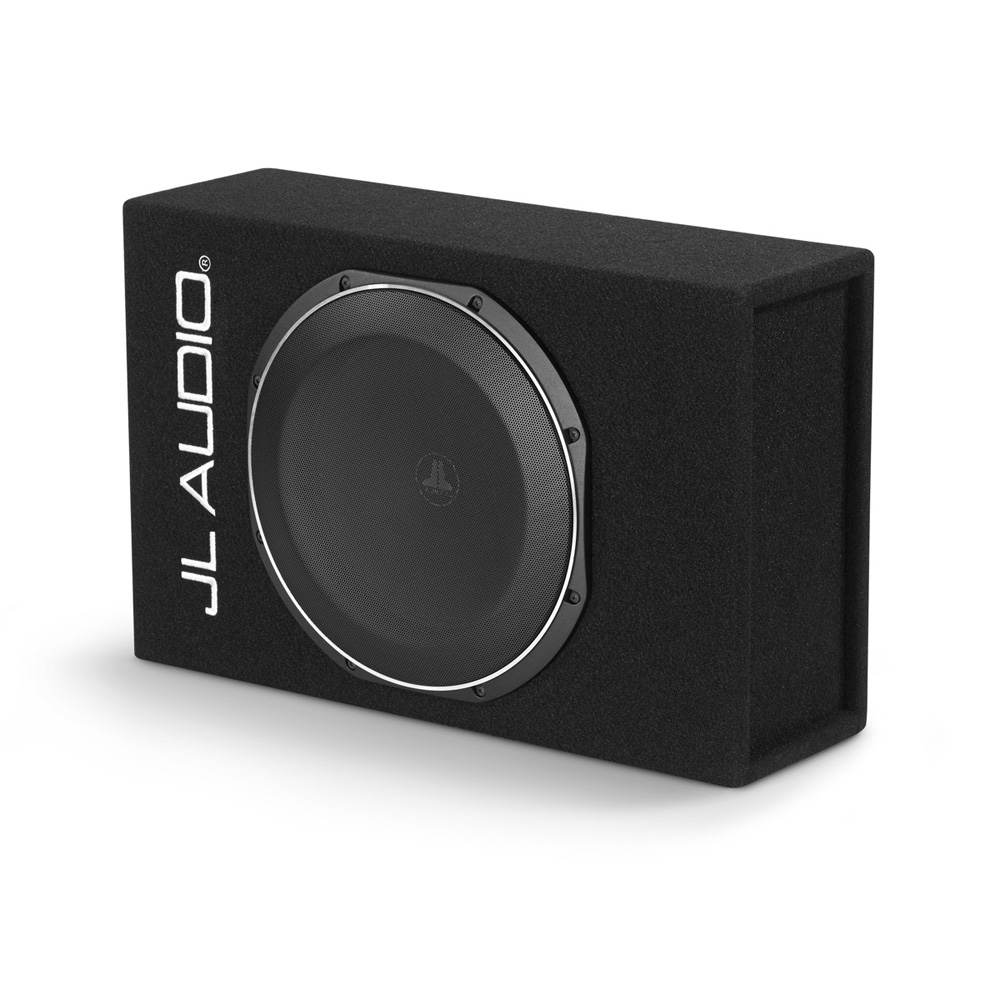

• Single 12" Sealed Subwoofer Enclosure with Built-In Amplifier
• Power Output:
• RMS: 400 Watts Total
• Preloaded with single 10" TW1 Series Subwoofer Driver - 12TW1-0.25
• Built-in DCD Class D amplifier
• Sealed enclosure with carpet finish
• 2 Year Manufacturer's Warranty
  Subwoofer Features:
• Injection molded, mica-filled polypropylene cone
• Rubber surround
• Cast alloy frame
• Long linear excursion capability (0.40 in / 10 mm, one-way)
• DMA-optimized motor design
• Patented "concentric tube" architecture
• Patented "floating cone attach method" technology

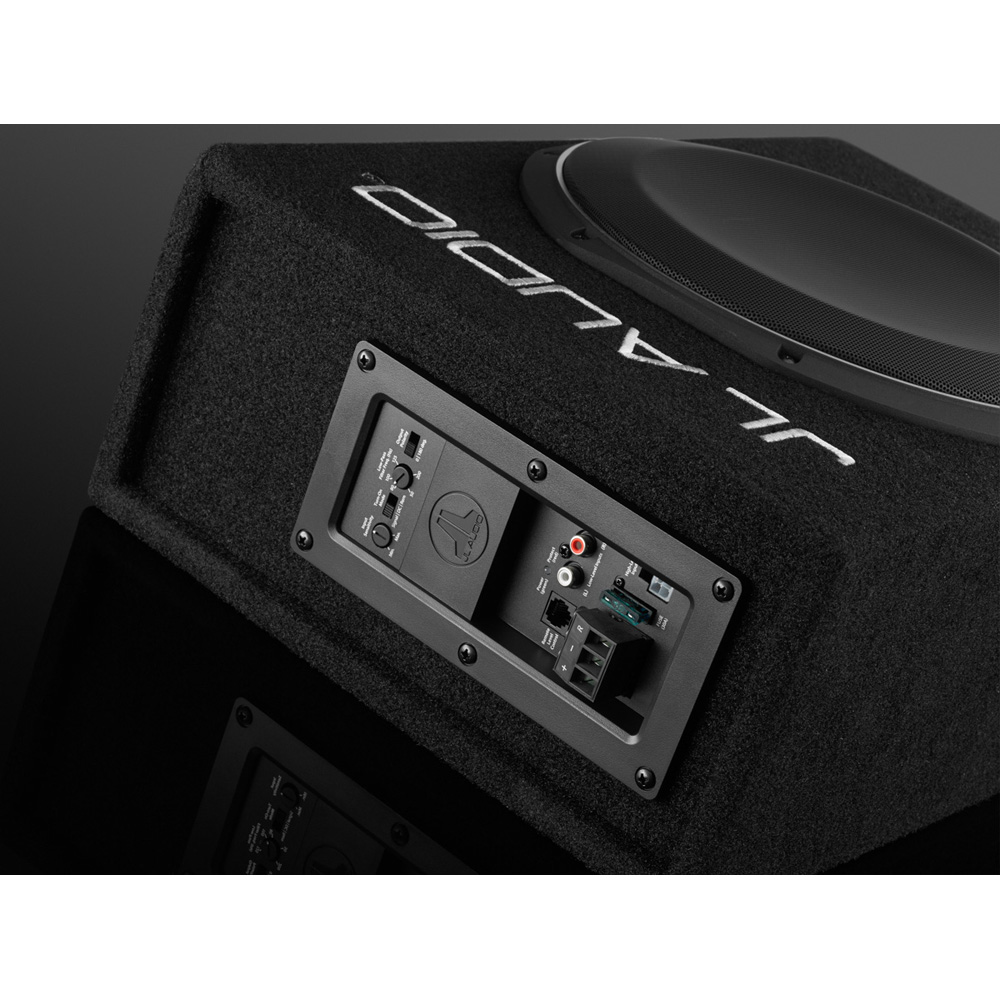

  Amplifier Features:
• Class D amplifier
• Input Voltage Range @ RCA Inputs: 70 mV - 1.40 V RMS
• Input Voltage Range @ High-Level Inputs: 280 mV - 5.4 V RMS
• 12 dB per octave filter slope
• Low-pass filter: 50 - 200 Hz
• Selectable output polarity (i.e. Phase): 0 / 180°
• Selectable turn-on modes: Sig / DC / REM
• Automatic turn-on (via signal sensing or DC offset sensing)
• High level speaker input, w/ molex connection harness
• Optional bass remote available, sold separately: JL Audio RBC-1
• Fuse Rating: 30A x 1
  Enclosure Features:
• V-Groove MDF Construction
• Automotive-grade vehicle carpet
• CNC-Cut High-Grade MDF
• Silver "JL AUDIO Built In USA" embroidery on front baffle
• Enclosure Dimensions: 6.625" D x 21.00" W x 13.50" H
• SKU # 93335
• 1-Year Warranty
