Product Description

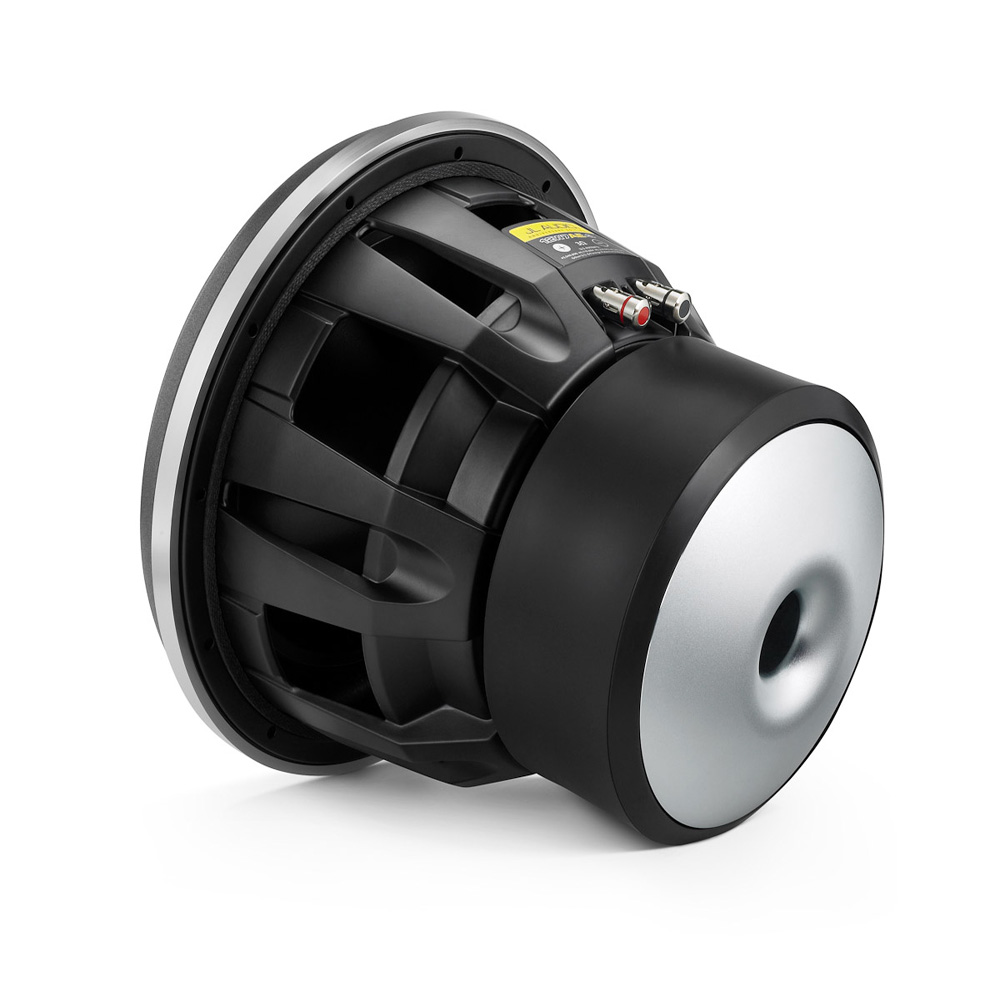

• 12" W7AE Series Subwoofer Driver
• Power Handling:
  • RMS: 1000 watts
• Recommended Power Range: 400 - 1000 watts
• 10th Anniversary Edition:
  • Satin-Black Powdercoated Basket
  • Bright Anodized Surround Clamp Ring
  • Anniversary Edition Cone Badge
  • Anniversary Edition Terminal Label
• Impedance: Single 3 Ohm
• Polypropylene W-Cone assembly
• Polyester foam OverRoll surround
• Floating-cone attach method
• Plateau-reinforced spider attachment
• Radially cross-drilled pole piece
• Massive forced-air-cooled aluminum alloy frame
• Highly linear, DMA-Optimized motor system
• Huge diameter, progressive roll spider
• Co-extruded double lead wires
• Dual ultra-long voice coils
• Aluminum Bar Grille Available: JL Audio SGR-12W7
• Precision-built in USA at JL Audio's Miramar, Florida factory
• Mounting depth: 9.5 "
• Cutout dimensions: 10.5 "
• Free Air Resonance (Fs): 27.2 Hz
• Sensitivity: 86.2 dB
• Xmax: 29 mm
• Reference Efficiency (no): 0.2500%
• Frequency response: ~18 ~ 200 Hz
  • 85 Hz LPF recommended
• SKU # 92115
• 1-Year Warranty
